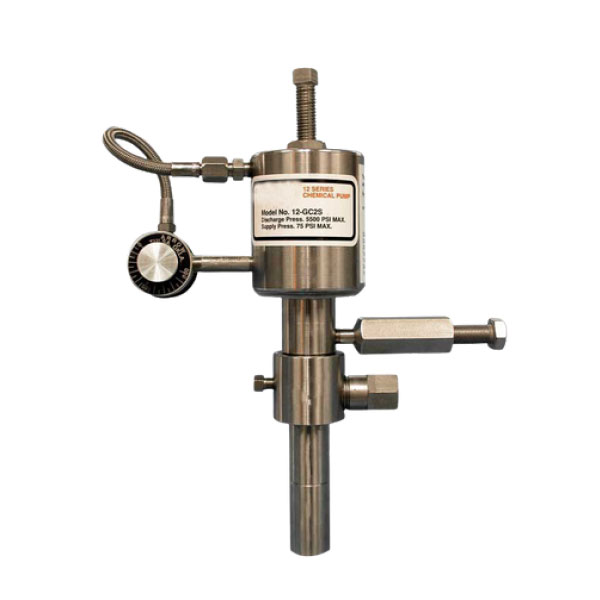

SES Arrow 12 Series Chemical Pump

The SES Arrow 12 Series Chemical Pump is a positive displacement unit powered by gas or air. The 12 Series Pump fills the requirements of a broad range of applications because of its ability to achieve high discharge pressures and wide volume ranges. The pumps are precision-designed to consistently inject metered amounts of de-emulsifiers, solvents, corrosion inhibitors, methanol, and desalting agents into wellheads and pipelines.

DESCRIPTION

The SES Arrow 12 Series Chemical Pump operates on gas or air at a regulated supply pressure of 15 to 75 PSI. It is constructed of high-quality 316 stainless steel, with the piston rod composed entirely of 17-4 PH. Buna and Viton packing are available. The stainless steel timer assembly contributes to a longer life for the chemical pump. Due to the small piston volume, the 12 Series Chemical Pump is extremely economical to operate.

FEATURES

• All 300 Series S.S. construction
• Compact, easy to mount 11" x 9" x 3", weighs only 7lb. 2 oz.
• Discharge pressure to 3,000 PSI.
• Mounts in vertical position for easy operation
• Up to 5500 PSI maximum discharge pressure
• Supply gas ports plumbable for return to low-pressure system or exhaust
• Packing gland grease jack for positive lubrication
• Either horizontal or vertical suction entry to the pump
• Up to 1" stroke available, outside adjustable.
• Up to 50 strokes per minute available, outside adjustable
• Furnished with SS line check valve
• Can easily be mounted vertically on top of a drum of chemicals by using an optional drum adapter
• Optional supply gas filter and regulator available for higher supply gas pressures
• Either 1/4" or 1/2" plunger size available
